ASSET TRACKER EASY
ASSET TRACKER EASY

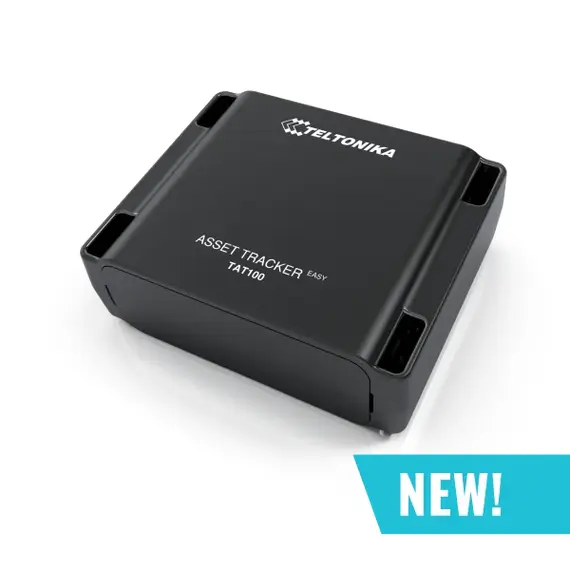

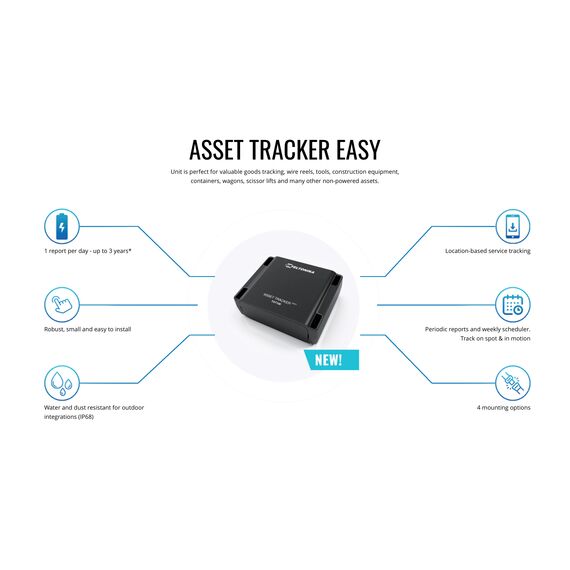

Asset tracker easy is a highly anticipated brand new asset tracking solution from Teltonika with a robust, practical and water-resistant (IP68) enclosure, which combined with different mounting accessories provides you an extremely easy installation. Developed on a low power Bluetooth chipset it gives us the possibility to put all of our knowledge into the unit and at the same time provide long battery life time. Unit is perfectly suitable for valuable goods tracking, wire reels, tools, construction equipment, elevators, containers and many other non-powered assets.
* Battery life estimates are influenced by many factors such as outdoor temperature, frequency of reporting, installation and orientation of the device, network coverage, additional functionalities (like Bluetooth scanning enabled) and more.
| Technical Specifications | |
|---|---|
| HARDWARE | |
| Module | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Location Sources | GNSS, LBS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBm |
| Cellular |
Quad-band GSM 850 / 900 / 1800 / 1900 MHz GPRS Multi-Slot Class 12 (up to 440 kbps) GPRS Mobile Station Class B |
| Power | Extremely low self-discharge Li-SOCl2 swappable battery, 7.2V 2200mAh (15,84Wh) |
| Antenna | GNSS antenna (Internal High Gain), GSM antenna (Internal High Gain) |
| Interface |
Ultra-low-power Bluetooth BlueNRG-232 chipset, 2.0 micro-USB, Internal eSIM slot, 128 MB internal flash memory (220‘000 records), “Reset” button |
| Sensors | Integrated Accelerometer |
| External | Bluetooth Sensors (up to BLE 5.0) |
| SOFTWARE | |
| Scenarios |
Enhanced tamper detection, Accelerometer wake up, GNSS and LBS, Indoor Tracking, Bluetooth sensor support (Light, Temperature, Humidity, etc.), Recover mode, Movement detection, Scheduler with time zones, Tracking on stop / on move, Backup Tracking, Static navigation |
| Data sending | Main, Duplicate and Backup servers |
| Configuration and firmware update |
FOTA Web (cloud based solution) Teltonika Configurator (USB) |
| Protocols | UDP/TCP/SMS |
| Security |
Configuration password SMS login and password Authorized GSM numbers list |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 78 x 63 x 28 mm (L x W x H) |
| Ingress Protection Rating (pending) | IP68 |
| CERTIFICATION & APPROVALS | |
| Regulatory (pending) | CE(RED), EAC, RoHS, REACH |
